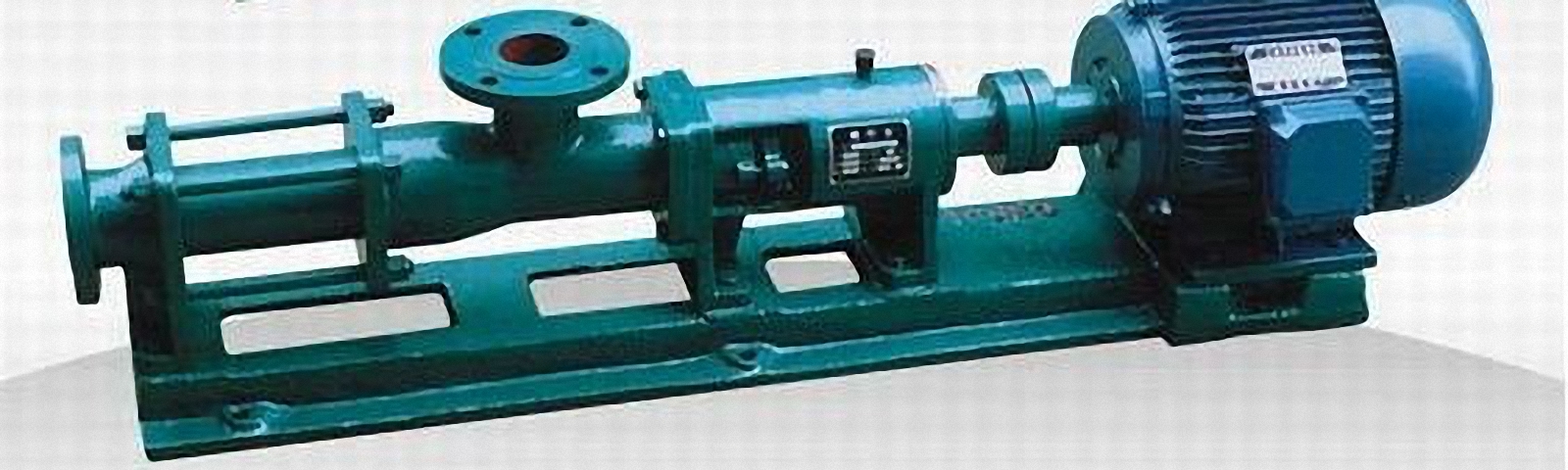

Surface multiphase pc pumps

　　The Surface Multiphase PC Pump is a positive displacement pump whose main parts are stator and rotor and adopts the technology of multi-thread involute technology. The main advantages are wide range rotate speed, small pressure pulsation, stable rotation, high self-absorption ability, convenient services, simple structure, reliability, long work life and so on. It is suitable for various liquid mediums like high viscous crude oil and multiphase transportation that can be widely used in petroleum, coal, chemicals, food area. And so on.

Specifications:*

Model	m3/h Rated Flow	ml/min Displacement	Rated Pressure	r/min Rotating Speed	Suction Pressure	kW Motor Power
HL22-20-2.4	20	2200	2.4	167	＞0.06	22
HL22-16.5-2.4	16.5	2200	2.4	136	＞0.06	18
HL22-14.5-2.4	14.5	2200	2.4	120	＞0.06	15
HL22-12.5-2.4	12.5	2200	2.4	107	＞0.06	15
HL22-10-2.4	10	2200	2.4	96	＞0.06	11
HL22-8-2.4	8	2200	2.4	77	＞0.06	10
HL22-20-1.8	20	2200	1.8	167	＞0.06	15
HL22-16.5-1.8	16.5	2200	1.8	136	＞0.06	15
HL22-14.5-1.8	14.5	2200	1.8	120	＞0.06	11
HL22-12.5-1.8	12.5	2200	1.8	107	＞0.06	11
HL22-10-1.8	10	2200	1.8	96	＞0.06	10
HL22-8-1.8	8	2200	1.8	77	＞0.06	10
HL44-33-2	33	4400	2	136	＞0.06	30
HL44-29-2	29	4400	2	120	＞0.06	22
HL44-25-2	25	4400	2	107	＞0.06	22
HL44-33-1.6	33	4400	1.6	136	＞0.06	22
HL44-29-1.6	29	4400	1.6	120	＞0.06	18
HL44-25-1.6	25	4400	1.6	107	＞0.06	18
HL44-33-1.2	33	4400	1.2	136	＞0.06	22
HL44-29-1.2	29	4400	1.2	120	＞0.06	18
HL44-25-1.2	25	4400	1.2	107	＞0.06	15
HL55-52-2	52	5500	2	167	＞0.06	40
HL55-42-2	42	5500	2	136	＞0.06	37
HL55-31-2	31	5500	2	107	＞0.06	30
HL55-52-1.6	52	5500	1.6	167	＞0.06	37
HL55-42-1.6	42	5500	1.6	136	＞0.06	30
HL55-31-1.6	31	5500	1.6	107	＞0.06	22
HL66-62-1.5	62	6600	1.5	167	＞0.06	37
HL66-50-1.5	50	6600	1.5	136	＞0.06	30
HL66-42-1.5	42	6600	1.5	120	＞0.06	30
HL66-31-1.5	31	6600	1.5	96	＞0.06	22
HL66-29-1.5	29	6600	1.5	85	＞0.06	18
HL66-62-1.2	62	6600	1.2	167	＞0.06	30
HL66-50-1.2	50	6600	1.2	136	＞0.06	25
HL66-42-1.2	42	6600	1.2	120	＞0.06	22
HL66-31-1.2	31	6600	1.2	96	＞0.06	18
HL66-29-1.2	29	6600	1.2	85	＞0.06	15
HL127-83-2	83	12700	2	136	＞0.06	75
HL127-75-2	75	12700	2	107	＞0.06	60
HL127-67-2	67	12700	2	96	＞0.06	55
HL127-58-2	58	12700	2	85	＞0.06	50
HL127-83-1.6	83	12700	1.6	136	＞0.06	60
HL127-75-1.6	75	12700	1.6	107	＞0.06	50
HL127-67-1.6	67	12700	1.6	96	＞0.06	45
HL127-58-1.6	58	12700	1.6	85	＞0.06	37
HL127-83-1.2	83	12700	1.2	136	＞0.06	45
HL127-75-1.2	75	12700	1.2	107	＞0.06	37
HL127-67-1.2	67	12700	1.2	96	＞0.06	37
HL127-59-1.2	58	12700	1.2	85	＞0.06	30
